American Sound Connection
SUB WOOFER
$359.00
If you want to buy this product click the link

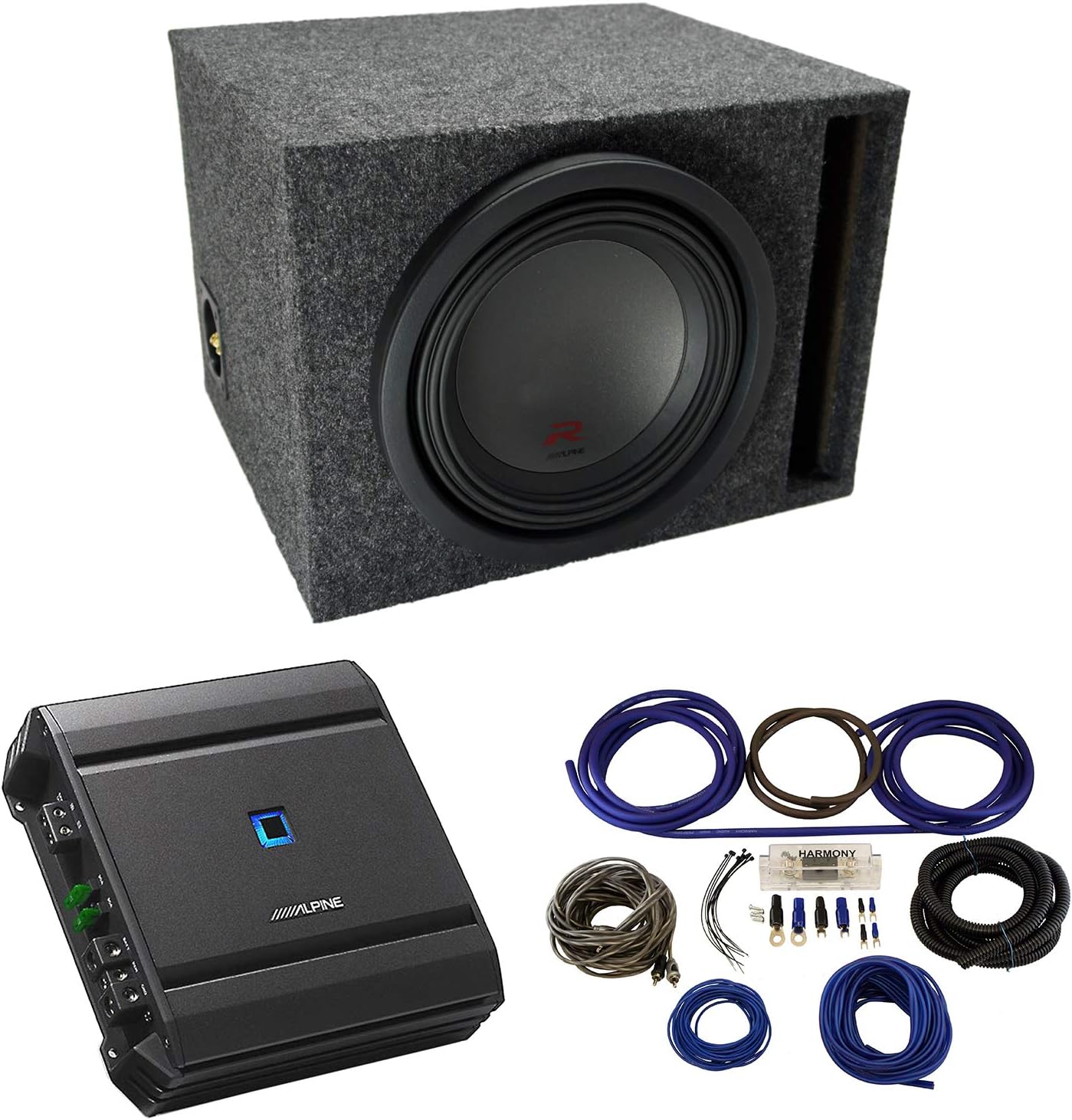

American Sound Connection Alpine Bundle Compatible with Universal Car ALP19-R-W10D4 Single 10" Loaded Vented Port Sub Box Enclosure
Product information
Additional details
Audio Output Mode | Mono, Stereo |
Mounting Type | Car Mount |
Speaker Type | Subwoofer |
Antenna Location | Car |
Subwoofer Diameter | 10 Inches |
Controller Type | Corded electric |
Color | With Amp |
Is Waterproof | FALSE |
Warranty Type | Limited |
Control Method | Touch |
Speaker Size | 1E+1 Inches |
Woofer Diameter | 1E+1 Inches |
Sound Quality
Number of Audio Channels | 3.0 |
Impedance | 4 Ohm |
Connectivity
Connectivity Technology | wired |
Subwoofer Connectivity Technology | Wired |
Connectivity Protocol | wired |
Power Source
Power Source | Corded Electric | ||||||||||||||||||||||||||||||||||
Item details
Power
Measurements
Compatibility
Audio Hardware
|
|
Product Description
This Package Includes the Following Items:
1 x Car Audio Single 10" Vented Subwoofer Stereo Sub Box Ported Enclosure 5/8" MDF
1 x Alpine R-W10D4 Car Audio Type R Series Sub Dual 4 Ohm 1500W Peak 10" Subwoofer
Car Audio Single 10" Vented Subwoofer Stereo Sub Box Ported Enclosure 5/8" MDF:
Features:
Single 10" Vented Sub Box
Mounting Depth: 14"
Air Space: 1.14 Cubic Feet
Vented Enclosure
Dimensions: Width 16-1/2" x Height 12-1/4" x Depth 14-1/2"
Vented design allows for maximum output
Constructed with High Quality MDF
High Quality Binding Terminal Cup (Accepts Banana Terminal Plugs OR Bare Wire 'up to 10GA')
High Quality Gray Carpet
Alpine R-W10D4 Car Audio Type R Series Sub Dual 4 Ohm 1500W Peak 10" Subwoofer:
General Features:
10" Dual 4 ohm Type-R Subwoofer
Power Handling:
Peak: 2250watts
RMS: 750 watts
Recommended power range: 300 - 750W RMS
CTA-2031 compliant power ratings
Parabolic pulp/kevlar cone
H.A.M.R. surround
Polypropylene, mica and talc dust cap
Reinforced cone neck and spider joint
Cast aluminum frame with integral shorting sleeve
8AWG push terminals with VC configuration jumpers
2.6" High excursion overhung voice coil
111 oz. Strontium ferrite segmented magnet
Top-mount depth: 5-7/8"
Cutout diameter: 9-1/16"
Frequency Response: 26 - 200Hz
Sensitivity: 82.4dB
Resonance Frequency (Fs): 31Hz
